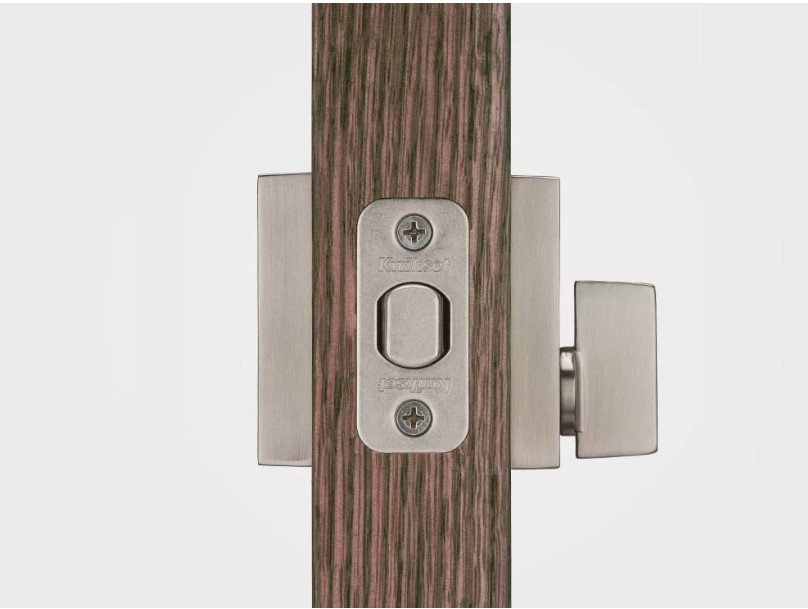

Downtown Deadbolt - Keyed One Side - featuring SmartKey

258 SQT SMT

Function
Keyed One Side
Finish

Less is More

Uptown and Downtown are 50% slimmer than most deadbolts on the market. Their modern approach to design —less is more— contributes to the overall appeal of the entryway. Use the button below to compare the difference in size.

Re-Key to any KW1 Keyway Key

While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.

The Locksmith's Choice.

We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.

Features

Designer style and superior security with this Kwikset Signature Series™ product
For use on exterior doors where keyed entry and security is needed
Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
Deadbolt operated by key outside and thumb turn inside
Comes with 2 keys
Deadbolt Latch has 2 interchangeable faceplates - round corner and square corner
Certified Highest Residential Security, Durability and Finish - ANSI/BHMA Grade AAA
Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
Includes full lip round deadbolt strike
1 inch deadbolt throw
Locking mechanism functions with turn piece on the interior of the lock
Easily installs in minutes with just a screwdriver
Lifetime mechanical and finish warranty

Specifications

All Measurements are in Inches.

Kwikset Family

Downtown

Product Type

Deadbolt

Style

Contemporary

Entry Has SmartKey?

Yes

ANSI Grade

AAA

Min Door Thickness

1-3/8

Max Door Thickness

1-3/4

Assembled Height

2-5/8

Assembled Width

2-5/8

Assembled Length

1/2

Latch Backset Size

Adjustable

ADA Compliant

Interior Turn Piece Only

Cross Bore

2-1/8"

Support

DOCUMENTS

Note：Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
